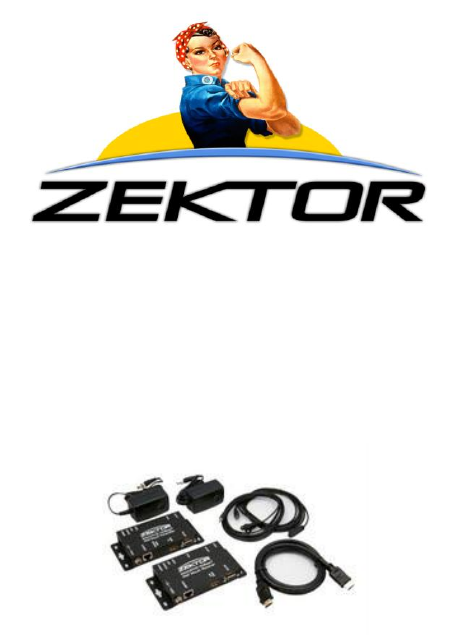

Zektor SoloCAT HD User Manual

User Manual SoloCAT™ HD HDMI over HDBaseT Extender with bi directional IR & RS232.atlona.com | 1-877-536-

EZ Crimp RJ45 crimp connectors: We have conducted long term tests on these popular connectors. HDBaseT does not appear to be as susceptible to int

Problem: No power Action: Check for power at electrical source. Remove and reconnect to one side of the SoloCAT HD. Only use DC wall power supplie

the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered by mail, customer agrees

PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF

Table of Contents 1. Included items pg2 2. Safety notices pg 3 3. About the SoloCAT HD™ pg 3 4. Specifications pg 4 5. SoloCAT HD™ panel conne

Safety and Notice Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage

Because the SoloCAT HD™ is HDMI 1.4 compatible it allows you to take full advantage of the new technology by supporting much higher resolutions than 1

Display Device Port Connector Standard 19 pin HDMI Link Connector RJ-45 Shielded HDCP Compliant Power on LED Indicator Input TMDS signal 1.2 volts (p

2. SoloCAT HD™v2 transmitter front SoloCAT HD™v2 transmitter rear SoloCAT HD™v2 receiver front SoloCAT HD™v2 receiver r

3. Installation 1. Turn off power at connected sources 2. Connect the HDMI® extension cable between the source and the “HDMI® IN” port of the SoloCAT

4. Bi directional IR IR Receiver Cable Directions: Insert the supplied receiver into the SoloCAT HD™ “IR2 IN” port and place the IR Receiver Cable,

5. LED Indicators On the front of the SoloCAT HD™ chassis there is a horizontal block of four (4) green LED’s that is marked “Status” on the chassis
