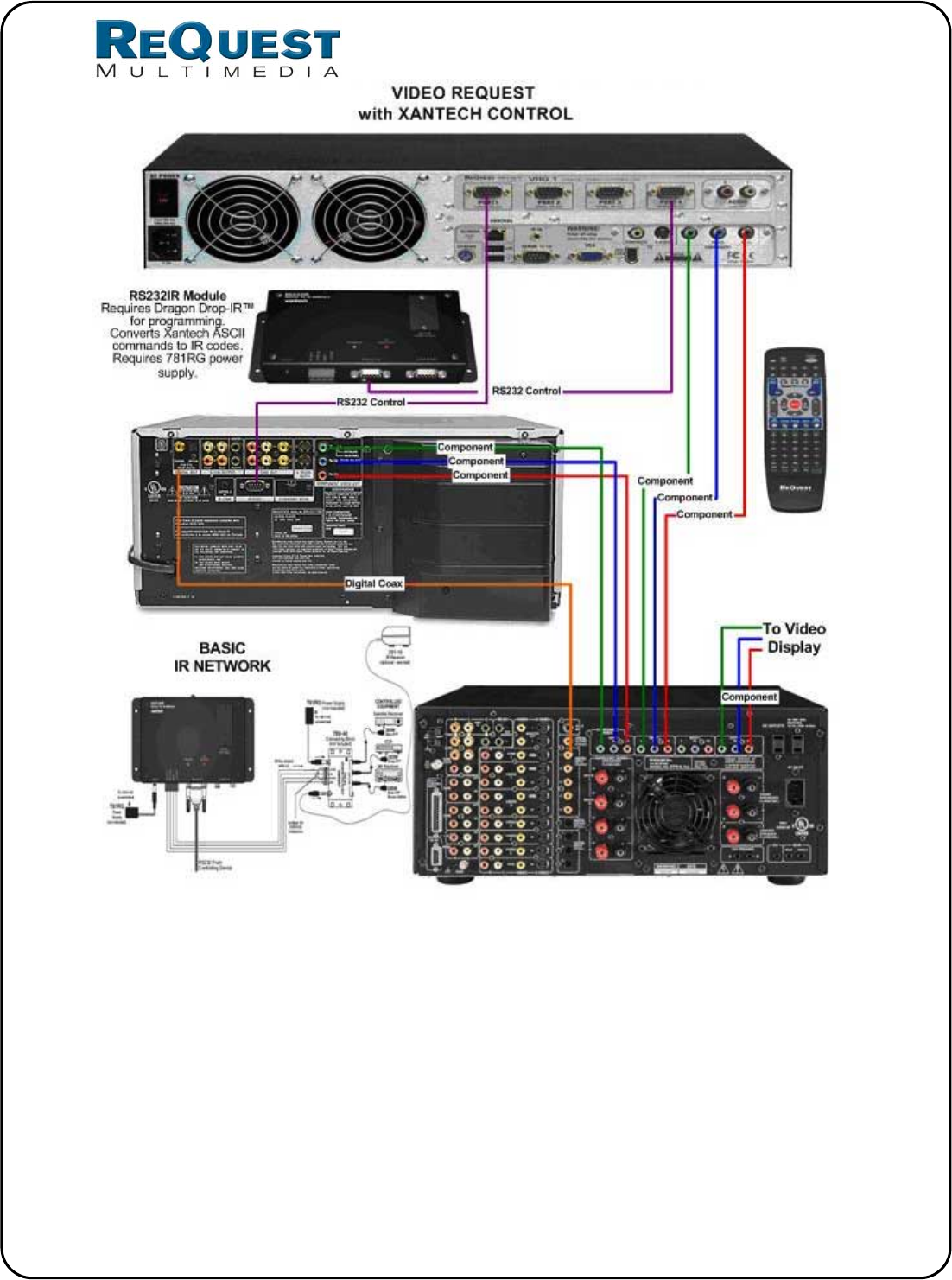

VideoReQuest with Xantech Control

1) Connect the VideoReQuest Audio and Video to the receiver (Can be Composite, S-

Video, or Component).

2) Connect 1-3 DVD Changers’ Audio and Video to the receiver.

3) Connect the RS-232 cable from the DVD changers to ports 1 – 3 of the

VideoReQuest.

4) Connect Port 4 of the VideoReQuest to the Xantech RS232IR module.

5) In the VideoReQuest Menu, go to Video Switch setting to set the appropriate

switch.

6) Connect the IR emitter or plug to the receiver.

7) Use Xantech Dragon Drop-IR software to load receiver codes. First code is for

VideoReQuest. Code 2- 4 is for DVD changer 1-3.
