Page 7

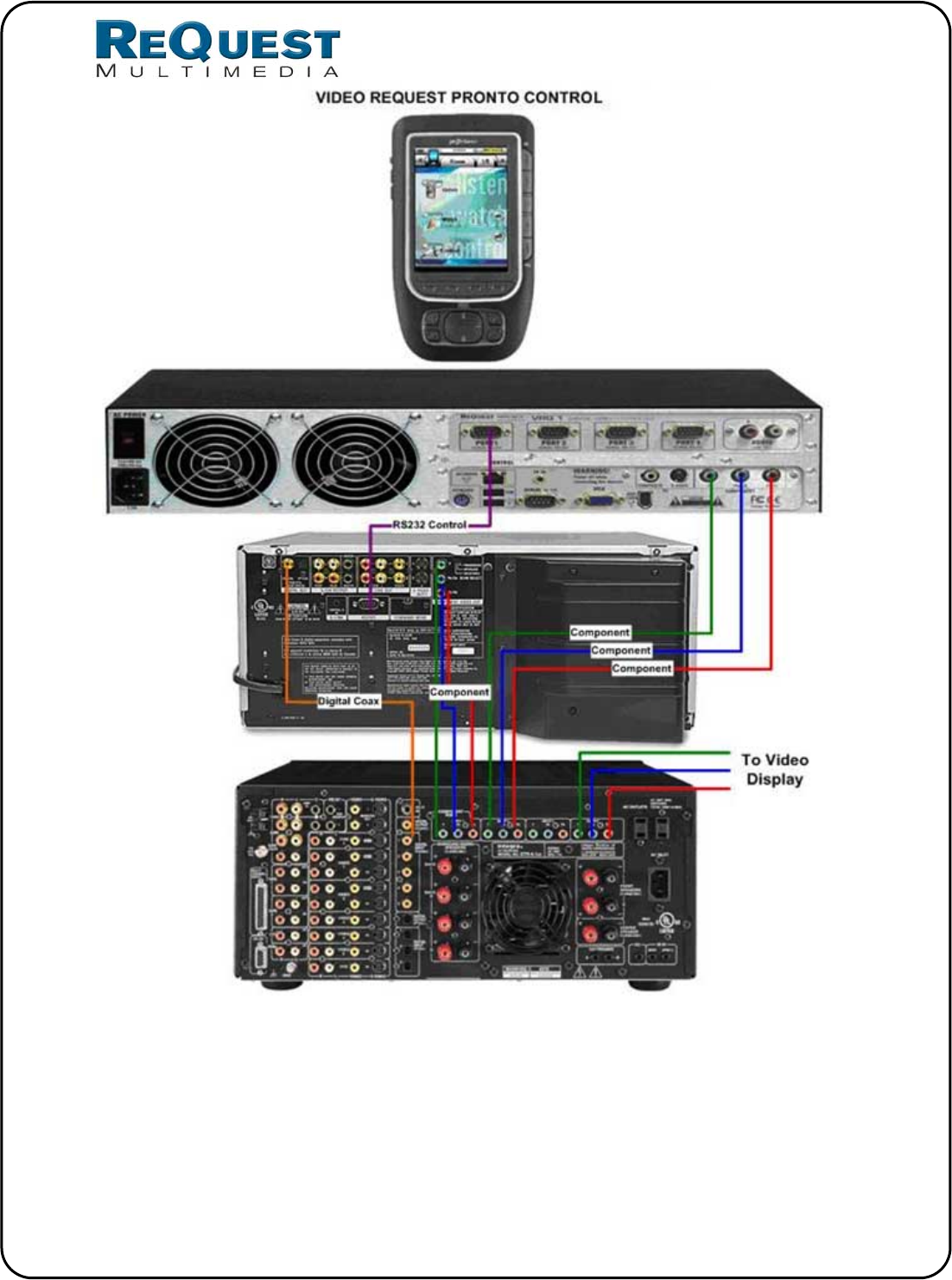

VideoReQuest with Pronto

1) Connect the VideoReQuest Audio and Video to the receiver (Can be Composite, S-

Video, or Component).

2) Connect 1 DVD Changers’ Audio and Video to the receiver.

3) Connect the RS-232 cable from the DVD changers to port 1 of the VideoReQuest.

4) Program the Pronto with the VideoReQuest sample program. Program the VRQ,

DVD, Play, Stop, and Pause command to the appropriate receiver command.
